X1000 — compact and scalable digital imaging system
- 1-3 heads
- Single table
- 24 x 32” / endless
- Island of automation or in-line
- Reel-to-reel
X1000 datasheet
Automation datasheet
For QTA and short-run productions
When your QTA operation demands maximum imaging throughput, the process flexibility to handle any design complexity and varying batch sizes at consistent high yields
Complex design mastery
Expose the most complex PCB designs with absolute precision — from single, double and multilayer boards to fine-line
Dual application performance
Finest lines at highest speeds — resist patterning (inner/outer layer) and solder mask imaging on a wide range of dry-film and solder mask materials
Faster imaging, rapid turnaround
Industry-leading imaging speed accelerates every print job, maximizes throughput and enables rapid turnaround times that keep your QTA operation ahead of the competition
Universal batch flexibility
Seamlessly transition between prototype runs, small batches, and medium production volumes without reconfiguration or performance compromise
Ultra-fast changeover
Minimal job-setup and changeover times keep your operation agile — run multiple different jobs per shift without productivity losses
Compact design and footprint
Fit into existing lines or tight production areas without facility modifications. Easily reposition between cells or manufacturing areas
For high-volume production
Seamlessly scale to high-volume production without process transfer — same system, same imaging performance, proven results

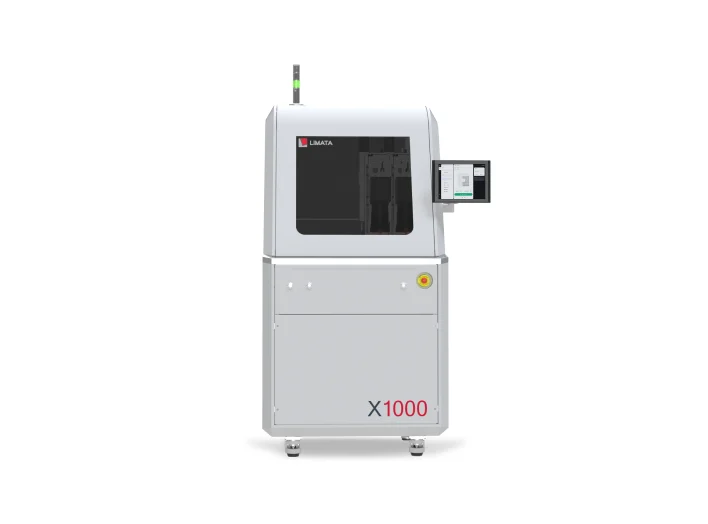

X1000
X1000 stand-alone with 1–3 heads — upgradable in the field

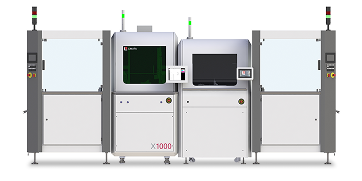

X1000 A Single
X1000 single unit with 1–3 heads — island of automation or in-line

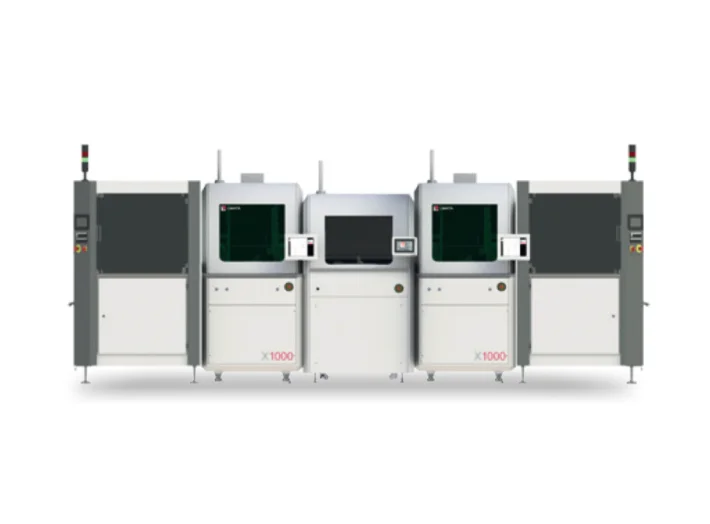

X1000 A Twin
X1000 twin unit setup with up to 6 heads — island of automation or in-line
Overview
X1000 at a glance
Resist patterning and solder mask imaging with PX technology
Up to 24” × 32” single-table system
Up to 24” × endless with conveyor system
Manual or turnkey automated
X1000
Requires only around 3.0 x 4.0 m (10 x 13 ft) floorspace including the space for ancillaries and service
Max. exposure area
24 × 32” (610 × 812 mm) max. exposure area
Powered by the next-gen PX imaging technology
PX Technology
Resist patterning and solder mask imaging
Applications
Fully digitized end-to-end workflow with built-in predictive maintenance
Turnkey automation options
Download X1000 datasheets
X1000
X1000 automation
Smart manufacturing
Fully digitized end-to-end workflow with built-in predictive maintenance
Complete digitization from CAM, imaging to predictive machine control — eliminating manual touchpoints and human error
Flawless connectivity to CAM
Fast and easy set-up of jobs
Support for all data formats
Import Gerber, Extended Gerber RS-274X, ODB++, DPF, DXF and JPG
Seamless and intuitive operator-machine interaction
Intelligent scaling modes
Highest registration accuracy and uniform imaging of the entire panel area — regardless of size or design
Highest data upload and resolution
High-speed imaging of the most detailed features powered by advanced GPU technology for instantaneous processing
- Data upload rates up to 50 GB/sec
- Data resolution up to 24,000 DPI
Traceability
Complete production traceability from PCB to finished product
Real-time machine data
Seamless integration with MES and factory systems for unified production management
- Machine status
- Imaging head monitoring data
- Production analysis
- Logs and many more
Real-time monitoring and control
Enabled by advanced sensorics
Automatic calibration and alignment ensures consistent accuracy without manual intervention
Live monitoring and control capabilities provide instant visibility and response to production status
Predictive maintenance
Real-time head data drives predictive maintenance for higher uptime and longer equipment life — replacing expensive, reactive servicing with proactive, condition-based maintenance
Automation
Scale up with turnkey automation
Island of automation or in-line ∙ Rigid or flexible sheets
Double the capacity in twin set-up
Diverse range of magazines, carts and conveyor available
X1000 automation

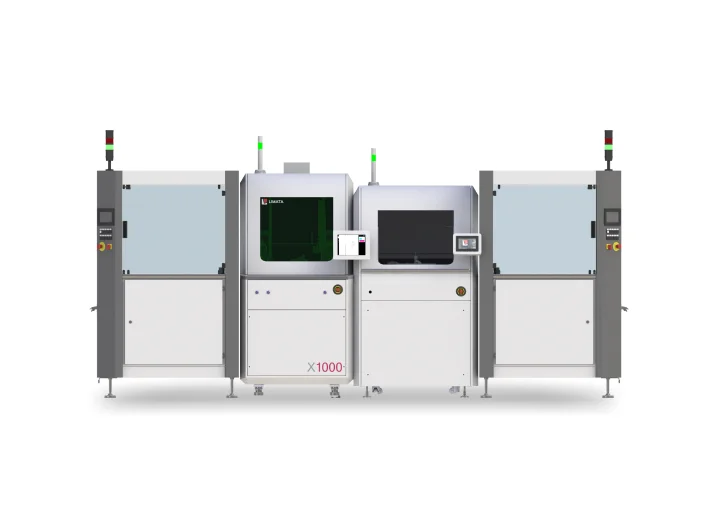

X1000 A
- 1-3 heads
- 24 × 24” (610 × 610 mm)
- Rigid and flex sheets
- Single or twin-set

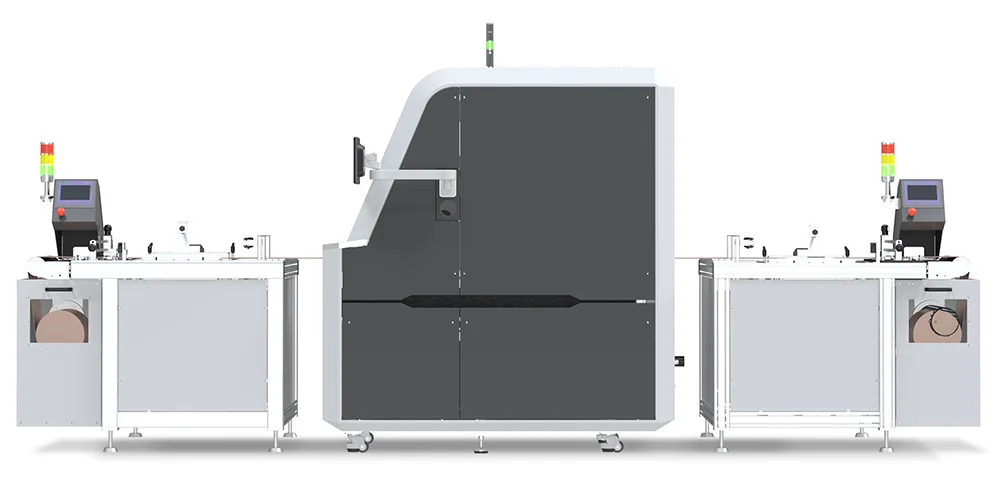

X1000 R2R
- 1-3 heads
- Flex R2R
- 24” (610 mm) max. roll width

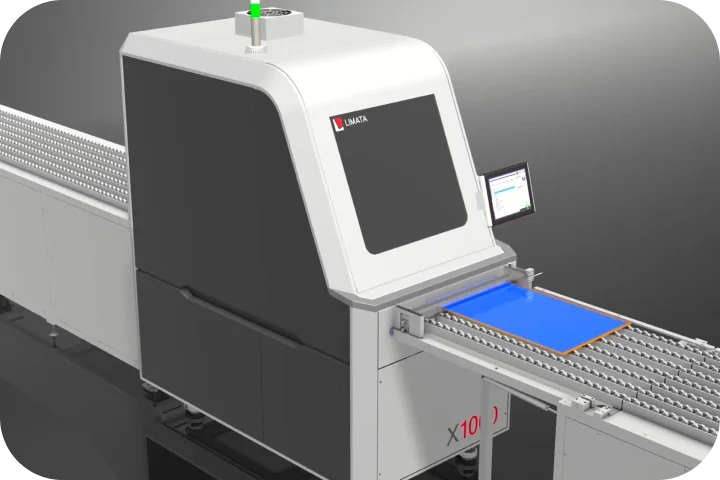

X1000 Endless
- 1-3 heads
- Rigid and flex sheets
- 24” (610 mm) × endless
Limata Care
Keep production running at highest efficiency. Unrivaled equipment uptime with minimal service costs
Industry-leading support
From installation and training, maintenance to optimization — with post-warranty service packages tailored to your process and needs
>90% instant remote resolution
Over 90% of reported or diagnosed “issues” are being solved remotely without on-site support needed
Less on-site service
Smart automated alignment, calibration and real-time remote control (of exposure heads) minimize on-site visits — and unplanned downtime
Virtually no downtime
Best in class MTTR with predictive maintenance and seamless UV-LED “drop-in” replacements that can be applied in under 60 min. No recalibration needed
Reduced spare-parts costs
Fewer exposure heads, use of the long-life UV-LED and smart “anti-aging” compensation — for extended MTBF
Seamless scalability
Upgrade your system with new PX heads in the field with minimal downtime, making sure your capacity keeps pace with customer demands
TCO* and OEE**
Industry-leading direct imaging efficiency. Reduced complexity. Lower TCO*
Highest imaging speed and efficiency
2-3x higher imaging throughput per head enabled by fewer scans over the imaging area
2x higher throughput on conventional solder mask inks enabled by UV+IR imaging
Outstanding imaging quality for superior yields
Best line quality on challenging topographies thanks to 3x higher depth of focus (±500 µm)
Excellent surface and solder mask imaging quality thanks to 3‑wavelength spectrum
Best-in-class availability and reliability
Real-time visibility and predictive control (sensor and SW enabled)
Predictive maintenance capability reduces service and maintenance costs
Lowest TCO* over the equipment lifecycle
Reduced system complexity — from fewer heads
Lower initial CapEx, simplified service and reduced after-sales costs
* Total cost of ownership: all costs of the machine lifecycle inc. maintenance, spare parts and service
** Overall equipment effectiveness: machine performance, quality and availability
Compare
Compare the X series models
From short-run to mass production
From standard PCBs dimensions to world-largest oversize boards
All models include PX imaging technology
X1000
Compact, versatile DI system for short-run, QTA to high-volume (turnkey automated), and diverse resist/solder mask applications
1-3 PX heads
Single table
24 × 32” max. exposure area
24” × endless
Automation options
X1000A — Island of automation or in-line
X1000 R2R — Flex (FPCB) reel-to-reel
Discover X1000
X2000
Flexible DI model equipped with a dual-table system and designed for continuous mid- to high-volume production
1-3 PX heads
Dual table
24 × 26” max. exposure area — X2000 Standard
24 × 48” max. exposure area — X2000 XL — 2nd table
Automation options
X2000A — Island of automation or in-line
Discover X2000
X3000
World’s largest DI system supporting oversized panels up to 48“ x 110“ or multiple panels in a single exposure run
1-3 PX heads
Single table with 4 vacuum zones
48 × 110” max. exposure area
Up to 12x (18 × 24”) panels in one imaging run
Discover X3000
Get to know us
15+ years
of engineering excellence and direct imaging innovation
Since 2010
100+
100+ installations worldwide, with a proven track record across industries
North America, Europe and Asia
5
Sales, service and support centers. Partnerships in all key manufacturing regions
