X2000 — merging flexibility with high throughput
- 1-3 heads
- Dual table
- Up to 24 x 48”
- Island of automation or in-line
X2000 datasheet
Automation datasheet
For mid- to high-volume productions
Adapts to every production requirement
Supporting panel sizes up to 24 × 48” – manual or turnkey automated, depending on floor space and process outline
Dual application performance
Finest lines at highest speeds — resist patterning (inner/outer layer) and solder mask imaging on a wide range of dry-film and solder mask materials
Optimized imaging cycle times
Dual-table panel handling and transport mechanism enables parallel imaging and registration
Overview
X2000 at a glance
Resist patterning and solder mask imaging with PX technology
Dual-table system - up to 24” × 48”
Manual or turnkey automated
X2000
Max. exposure area
24 × 48” (610 × 1,220 mm) max. exposure area

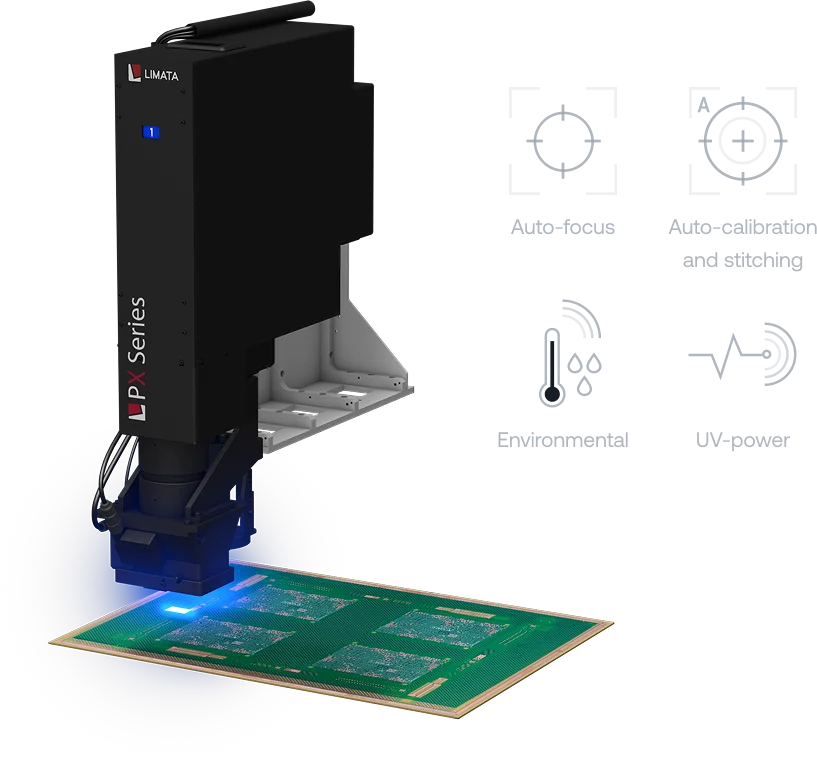

Powered by the next-gen PX imaging technology
PX Technology
Resist patterning and solder mask imaging
Applications
Fully digitized end-to-end workflow with built-in predictive maintenance
Turnkey automation options
Download X2000 datasheets
X2000
X2000 automation
Smart manufacturing
Fully digitized end-to-end workflow with built-in predictive maintenance
Complete digitization from CAM, imaging to predictive machine control — eliminating manual touchpoints and human error

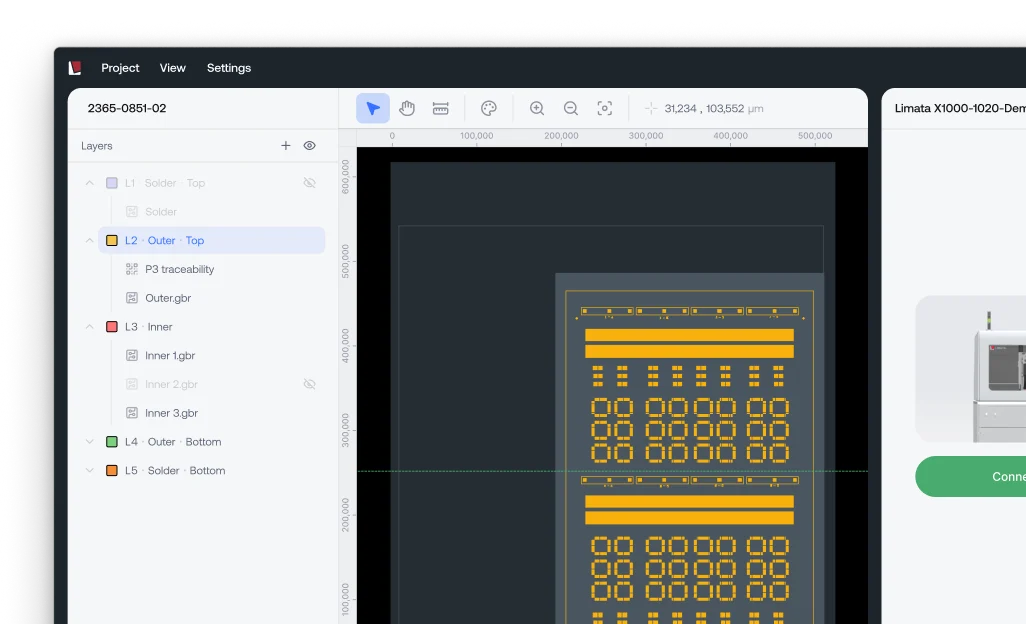

Flawless connectivity to CAM
Fast and easy set-up of jobs
Support for all data formats
Import Gerber, Extended Gerber RS-274X, ODB++, DPF, DXF and JPG
Seamless and intuitive operator-machine interaction
Intelligent scaling modes
Highest registration accuracy and uniform imaging of the entire panel area — regardless of size or design
Highest data upload and resolution
High-speed imaging of the most detailed features powered by advanced GPU technology for instantaneous processing
- Data upload rates up to 50 GB/sec
- Data resolution up to 24,000 DPI

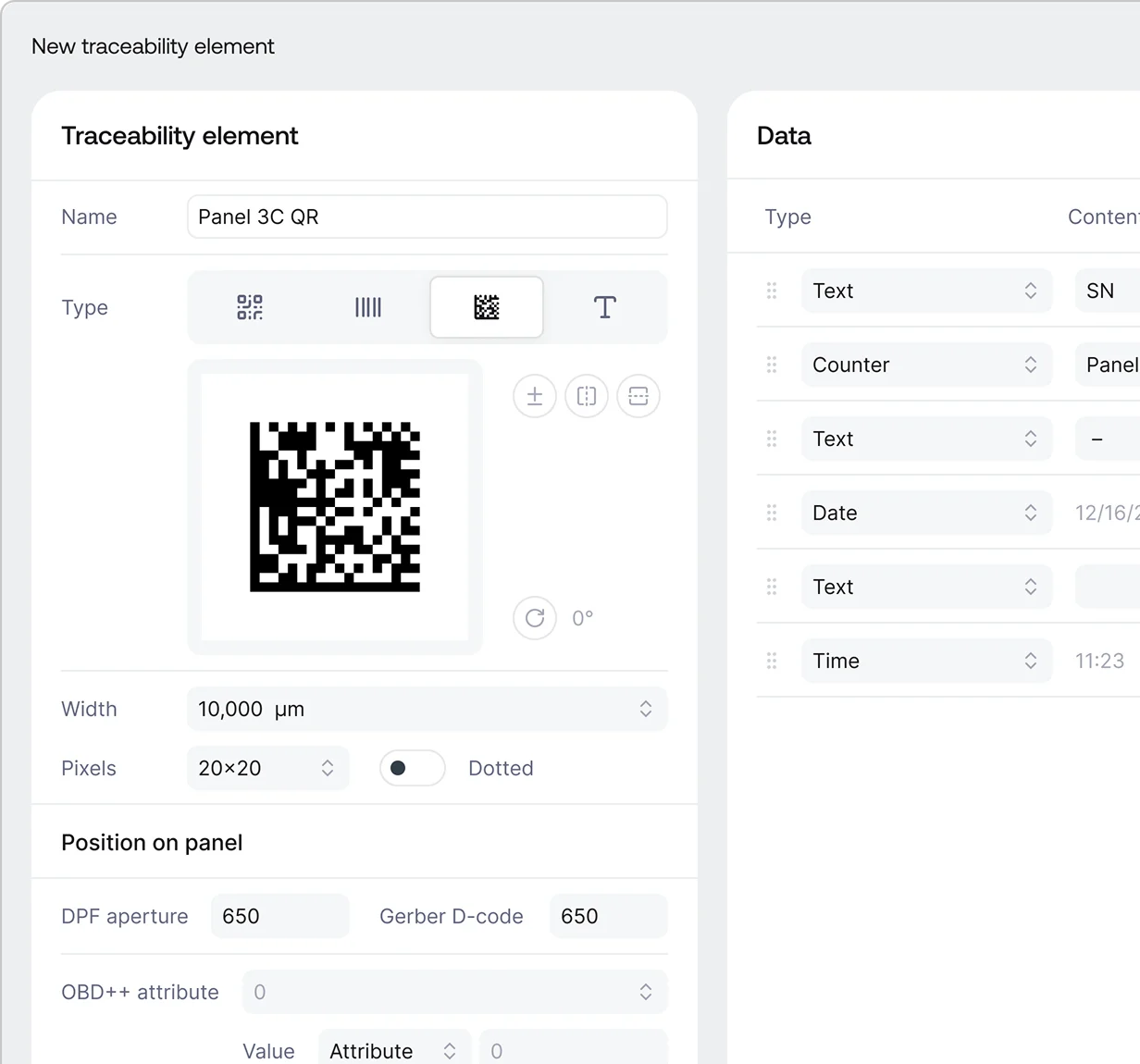

Traceability
Complete production traceability from PCB to finished product
Real-time machine data
Seamless integration with MES and factory systems for unified production management
- Machine status
- Imaging head monitoring data
- Production analysis
- Logs and many more

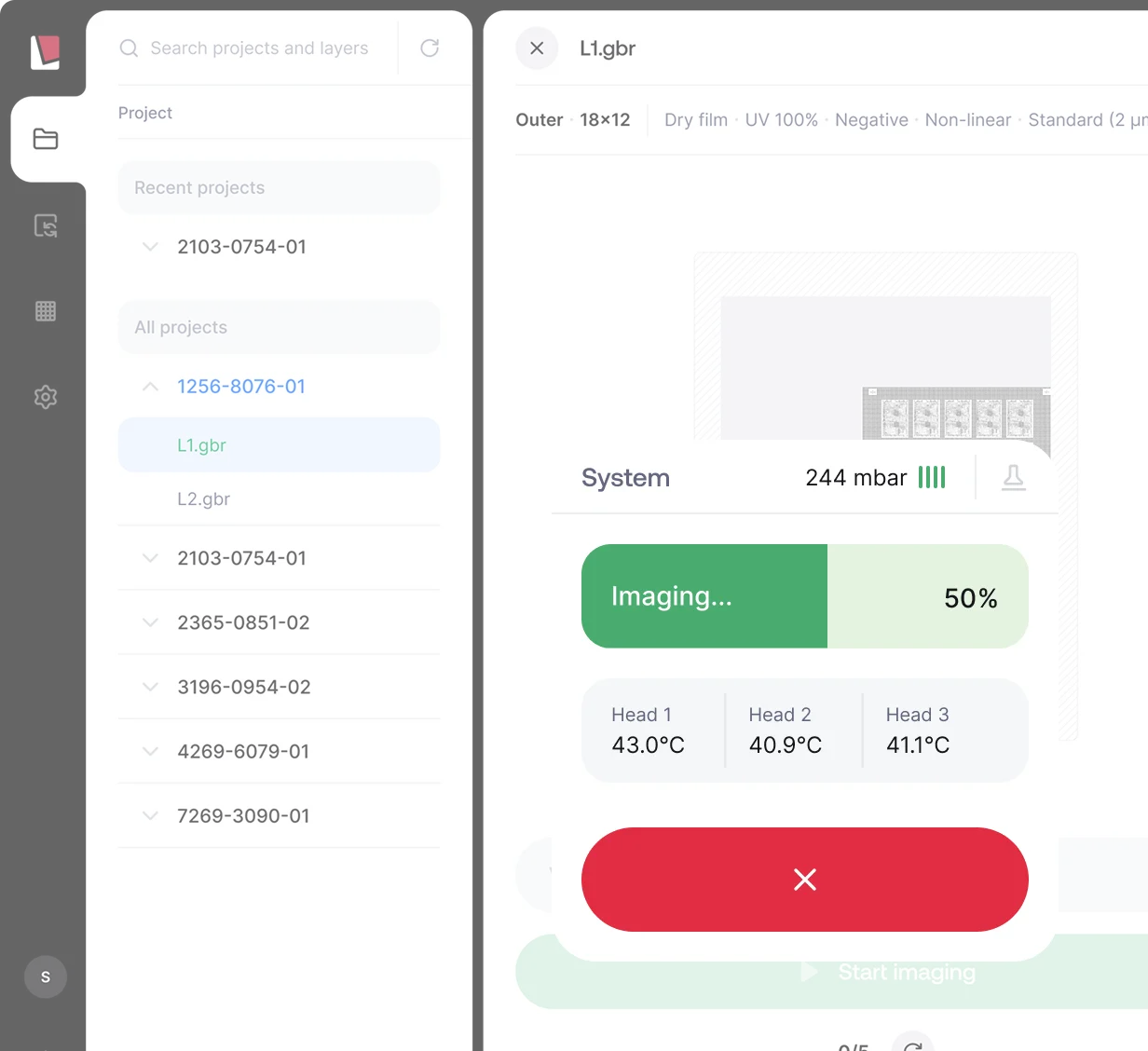

Real-time monitoring and control
Enabled by advanced sensorics
Automatic calibration and alignment ensures consistent accuracy without manual intervention
Live monitoring and control capabilities provide instant visibility and response to production status
Predictive maintenance
Real-time head data drives predictive maintenance for higher uptime and longer equipment life — replacing expensive, reactive servicing with proactive, condition-based maintenance
Automation
Scale up with turnkey automation
Island of automation or in-line ∙ Rigid or flexible sheets
Double the capacity in twin set-up
Diverse range of magazines, carts and conveyor available
X2000 automation

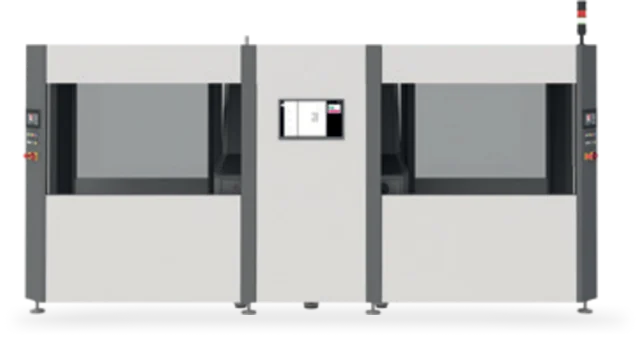

X2000 A Single
- 1-3 heads
- 24 × 24” (610 × 610 mm)
- Rigid and flex sheets

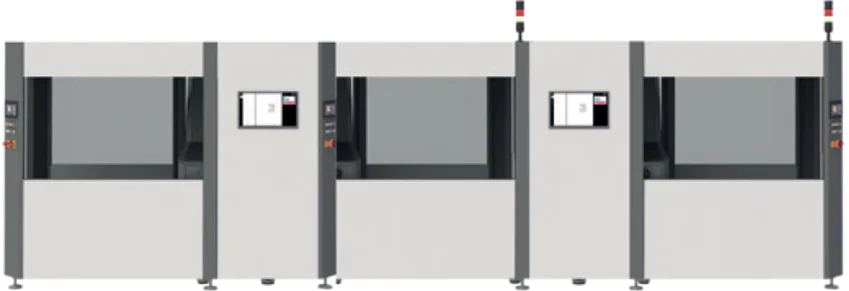

X2000 A Twin
- Up to 6 heads
- 24 × 24” (610 × 610 mm)
- Rigid and flex sheets
Limata Care
Keep production running at highest efficiency. Unrivaled equipment uptime with minimal service costs
Industry-leading support
From installation and training, maintenance to optimization — with post-warranty service packages tailored to your process and needs
>90% instant remote resolution
Over 90% of reported or diagnosed “issues” are being solved remotely without on-site support needed
Less on-site service
Smart automated alignment, calibration and real-time remote control (of exposure heads) minimize on-site visits — and unplanned downtime
Virtually no downtime
Best in class MTTR with predictive maintenance and seamless UV-LED “drop-in” replacements that can be applied in under 60 min. No recalibration needed
Reduced spare-parts costs
Fewer exposure heads, use of the long-life UV-LED and smart “anti-aging” compensation — for extended MTBF
Seamless scalability
Upgrade your system with new PX heads in the field with minimal downtime, making sure your capacity keeps pace with customer demands
TCO* and OEE**
Industry-leading direct imaging efficiency. Reduced complexity. Lower TCO*
Highest imaging speed and efficiency
2-3x higher imaging throughput per head enabled by fewer scans over the imaging area
2x higher throughput on conventional solder mask inks enabled by UV+IR imaging
Outstanding imaging quality for superior yields
Best line quality on challenging topographies thanks to 3x higher depth of focus (±500 µm)
Excellent surface and solder mask imaging quality thanks to 3‑wavelength spectrum
Best-in-class availability and reliability
Real-time visibility and predictive control (sensor and SW enabled)
Predictive maintenance capability reduces service and maintenance costs
Lowest TCO* over the equipment lifecycle
Reduced system complexity — from fewer heads
Lower initial CapEx, simplified service and reduced after-sales costs
* Total cost of ownership: all costs of the machine lifecycle inc. maintenance, spare parts and service
** Overall equipment effectiveness: machine performance, quality and availability
Compare
Compare the X series models
From short-run to mass production
From standard PCBs dimensions to world-largest oversize boards
All models include PX imaging technology
X1000
Compact, versatile DI system for short-run, QTA to high-volume (turnkey automated), and diverse resist/solder mask applications
1-3 PX heads
Single table
24 × 32” max. exposure area
24” × endless
Automation options
X1000A — Island of automation or in-line
X1000 R2R — Flex (FPCB) reel-to-reel
Discover X1000

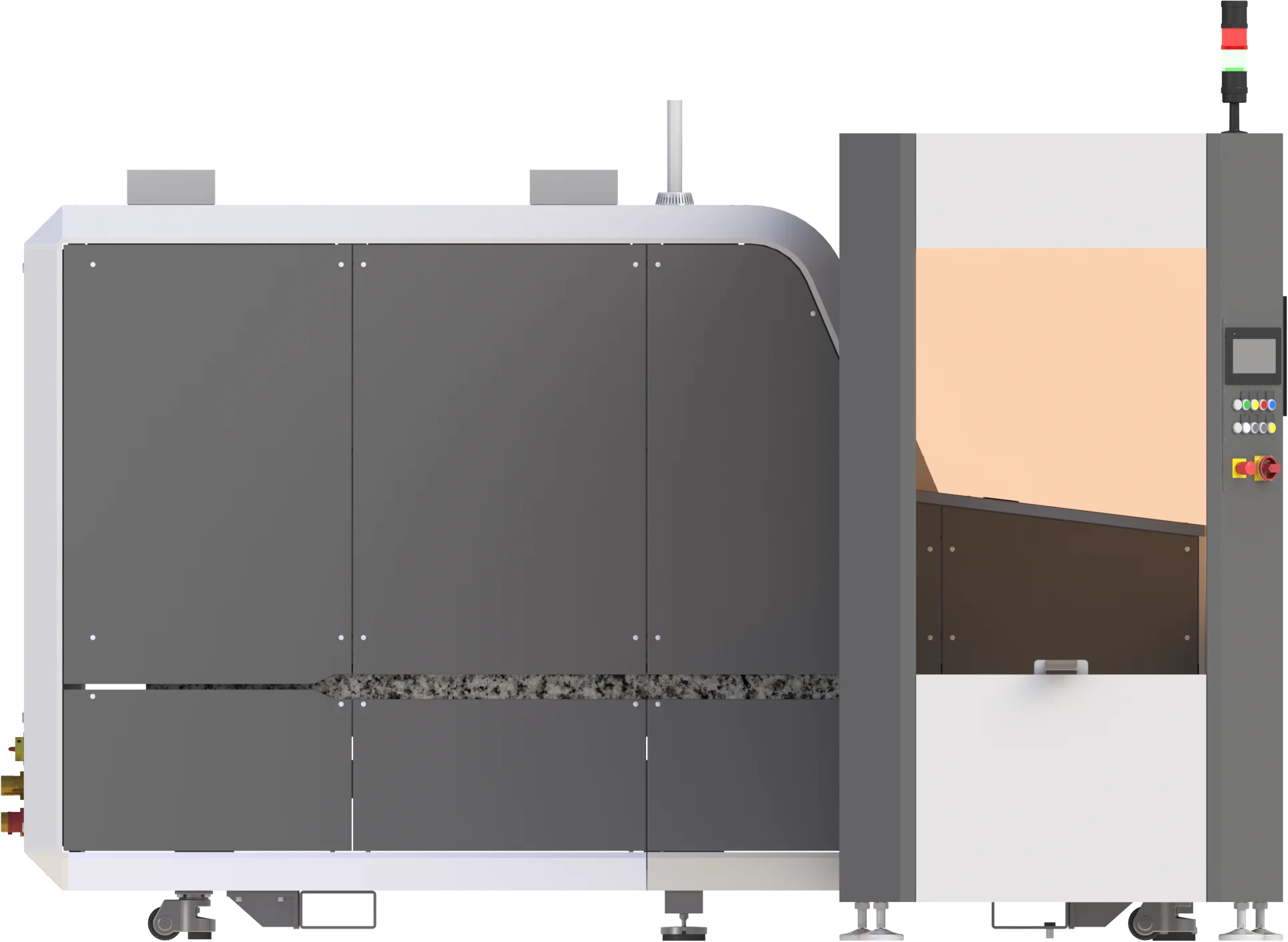

X2000
Flexible DI model equipped with a dual-table system and designed for continuous mid- to high-volume production
1-3 PX heads
Dual table
24 × 26” max. exposure area — X2000 Standard
24 × 48” max. exposure area — X2000 XL — 2nd table
Automation options
X2000A — Island of automation or in-line
Discover X2000
X3000
World’s largest DI system supporting oversized panels up to 48“ x 110“ or multiple panels in a single exposure run
1-3 PX heads
Single table with 4 vacuum zones
48 × 110” max. exposure area
Up to 12x (18 × 24”) panels in one imaging run
Discover X3000
